Metinox Overseas deals with ASTM A106 Gr B Seamless Pipes. The product is suitable for bending and similar operations. We are providing the superior quality of seamless pipes to all the clients available around the globe. ASTM A106 Gr B Seamless Pipes are known as seamless carbon steel pipes. For seamless carbon steel pipes, they are the standard specification. In high-temperature environments, additional silicon boost’s performance of our product. For high-temperature additional silicon boosts the performance of our product. Moreover, the grade covers seamless carbon steel wall pipe for high temperatures.
A106 Carbon Steel Gr.B Pipes, SA106 Carbon Steel Gr.B Seamless Piping, ASTM A106 Grade B Seamless Pipes, ASTM A106 Seamless Pressure Pipe, Gr B Seamless Steel Pipes Exporter, Astm A106 Seamless Steel Pipe Manufacturers, A106 Grade B Material Properties, A106 Gr.b Seamless Pipe Manufacturers, ASTM A106 Grade B Pipe, A106 Carbon Steel Grade B Pipes, A106 Carbon Steel Gr B Seamless Pipe, CS ASTM A106 Seamless Pipes Supplier in Mumbai India
The product is commonly used where fluids and gasses are transported by piping that exhibits pressure levels and higher temperatures. Suitable for forming operations like bending. ASTM A106 Gr B Seamless Pipes for high-temperature services are covered in a standard ASME specification as S/A 106. Our product is utilized as a part of the high-temperature transportation service of gases and liquids. However, requires a longer lead time.
A106 Carbon Steel Gr.B Round Pipes, Carbon Steel Gr.B Seamless Pipes, ASTM A106 Grade B Welded Pipes, CS ASTM A106 ERW Pipes, A106 Carbon Seamless Steel Pipe Manufacturers, Astm A106 Seamless Steel Pipe Manufacturers, Astm A106 Grade B Price in India, Astm A106 Seamless Steel Pipe Suppliers, ASTM A106 Gr B Carbon Steel High-Temperature Pipes Dealer, ASTM A106 Carbon Steel GR.B Pipes Exporter in Mumbai.
ASTM A106 Gr B Seamless Pipes are the best choice for special and general piping applications. Moreover, they are used for civil engineering, fire protection systems, gas field, oil field and, other industries. ASTM A106 Gr B Seamless Pipes aare constantly delivered and can be flanged and curled by consistent techniques. The product is available in several dimensions with all unique features. Moreover, in various sizes, weights galvanized, and black grades are both electric welded or seamless. Excellent mechanical properties and competitive prices are additional features offered by the product.
It is a heater steel grade pipe and weldable weight vessel utilized by mechanical fabricators. Pipe sizes of less than 2 are delivered as cold-drawn products, whereas 2 or more are treated as hot finished. The product comprises premium quality steel alloy, which is commonly more financially savvy than consistent pipes. Henceforth, the product is known for its resilience and, provided to our customers by full mechanical support. Tensile of area, chemical analysis, micro, and macro tests are performed as a mechanical test of the product. In addition, raw material test reports and heat treatment charts are provided to our clients. Furthermore, to prevent rust, our products are protected with flat steel bands.
Read More
Types of ASTM A106 Grade B Carbon Steel Seamless Pipes

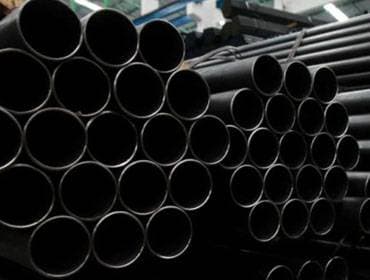

Seamless Pipe
ASTM A106 Carbon Steel Grade B Seamless Pipes, A106 Carbon Gr.B Seamless Pipe Supplier, A106 Carbon Steel Gr.B Seamless Pipe Exporter, SA106 Carbon Gr B Seamless Pipes Dealer, ASTM A106 Grade B Seamless Pipes, ASME SA106 Gr B Seamless Pipes in Mumbai, India.

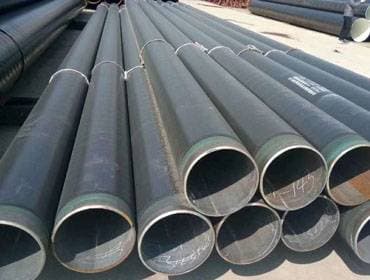

Welded Pipe
ASTM A106 Carbon Steel Grade B Welded Pipes, A106 Carbon Gr.B Welded Pipe Supplier, A106 Carbon Steel Gr.B Welded Pipe Exporter, SA106 Carbon Gr B Welded Pipes Dealer, ASTM A106 Grade B Welded Pipes, ASME SA106 Gr B Welded Pipes in Mumbai, India.
Round Pipe
ASTM A106 Carbon Steel Grade B Round Pipes, A106 Carbon Gr.B Round Pipe Supplier, A106 Carbon Steel Gr.B Round Pipe Exporter, SA106 Carbon Gr B Round Pipes Dealer, ASTM A106 Grade B Round Pipes, ASME SA106 Gr B Round Pipes in Mumbai, India.
ERW Pipe
ASTM A106 Carbon Steel Grade B ERW Pipes, A106 Carbon Gr.B ERW Pipe Supplier, A106 Carbon Steel Gr.B ERW Pipe Exporter, SA106 Carbon Gr B ERW Pipes Dealer, ASTM A106 Grade B ERW Pipes, ASME SA106 Gr B ERW Pipes in Mumbai, India.
Specification of ASTM A106 Grade B Carbon Steel Seamless Pipes
Specifications : ASTM A106 / ASME SA106
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size available Ex-stock
Thickness : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Size : 1/2" NB - 24" NB
Type : Seamless / ERW / Fabricated / CDW
Form: Round Pipes, Square Pipes, Rectangular Pipes.
Length : Single Random, Double Random & Required Length
Chemical Composition of ASTM A106 Grade B Carbon Steel Seamless Pipes
| Grade | C | Mn | Ph | Su | Si | Cr | Co | Mo | Ni | Va |
| Gr.B | 0.30 | *0.29 to 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
ASTM A106 Grade B Carbon Steel Seamless Pipe Mechanical Properties
| Grade | Mechanical Properties, Min. | |
| Tensile Strength(Mpa) | Yield Strength(Mpa) | |
| B | 415 | 240 |
ASTM A106 GRADE B CARBON STEEL SEAMLESS PIPE DIMENSIONS
| Standard | Permissible Variations in Outside Diameter | ||
| NPS” | OVER | UNDER | |
| ASTM A53-12 | 1-1/2 and less | 1/64” (0.015”) | 1/64” (0.015”) |
| ASTM A53-12 | 2 and over | 1% of OD | 1% of OD |
| ASTM A106-15 | 1/8 to 1-1/2 | 1/64” (0.015”) | 1/64” (0.015”) |
| ASTM A106-15 | Over 1-1/2 to 4 | 1/32” (0.031”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 4 to 8 | 1/16” (0.062”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 8 to 18 | 3/32” (0.093”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 18 to 26 | 1/8” (0.125”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 26 to 34 | 5/32” (0.156”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 34 to 48 | 3/16” (0.187”) | 1/32” (0.031”) |
ASTM A106 GRADE B CARBON STEEL SEAMLESS PIPE SIZES
| NPS [DN Designator] | Over | Under | ||
| in. | mm | in. | mm | |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
| Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
| Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
| Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
| Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
| Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |
ASTM A106 GRADE B CARBON STEEL SEAMLESS PIPE PRESSURE RATING
| Maximum Allowable Pressure (psi) | ||||||||||||||
| NPS | Outside Diameter | Schedule | ||||||||||||
| (in) | (in) | 10 | 20 | 30 | STD | 40 | 60 | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 1/4 | 0.54 | 7985 | 7985 | 10798 | 10798 | |||||||||
| 3/8 | 0.675 | 6606 | 6606 | 9147 | 9147 | |||||||||
| 1/2 | 0.84 | 6358 | 6358 | 8575 | 8575 | 10908 | 17150 | |||||||
| 3/4 | 1.05 | 5273 | 5273 | 7187 | 7187 | 10220 | 14373 | |||||||
| 1 | 1.315 | 4956 | 4956 | 6670 | 6670 | 9316 | 13340 | |||||||
| 1 1/4 | 1.66 | 4133 | 4133 | 5638 | 5638 | 7380 | 11276 | |||||||
| 1 1/2 | 1.9 | 3739 | 3739 | 5158 | 5158 | 7247 | 10316 | |||||||
| 2 | 2.375 | 3177 | 3177 | 4498 | 4498 | 7097 | 8995 | |||||||
| 2 1/2 | 2.875 | 3460 | 3460 | 4704 | 4704 | 6391 | 9408 | |||||||
| 3 | 3.5 | 3024 | 3024 | 4200 | 4200 | 6132 | 8400 | |||||||
| 3 1/2 | 4 | 2769 | 2769 | 3896 | 3896 | |||||||||
| 4 | 4.5 | 2581 | 2581 | 3670 | 3670 | 4769 | 5782 | 7339 | ||||||
| 5 | 5.563 | 2273 | 2273 | 3303 | 3303 | 4404 | 5505 | 6606 | ||||||
| 6 | 6.625 | 2071 | 2071 | 3195 | 3195 | 4157 | 5318 | 6390 | ||||||
| 8 | 8.625 | 1420 | 1574 | 1829 | 1829 | 2307 | 2841 | 2841 | 3375 | 4085 | 4613 | 5147 | 4971 | |
| 10 | 10.75 | 1140 | 1399 | 1664 | 1664 | 2279 | 2279 | 2708 | 3277 | 3847 | 4558 | 5128 | 4558 | |
| 12 | 12.75 | 961 | 1268 | 1441 | 1560 | 2160 | 1922 | 2644 | 3244 | 3843 | 4324 | 5042 | 3843 | |
| 14 | 14 | 875 | 1092 | 1313 | 1313 | 1533 | 2079 | 1750 | 2625 | 3283 | 3829 | 4375 | 4921 | |
| 16 | 16 | 766 | 956 | 1148 | 1148 | 1531 | 2009 | 1531 | 2585 | 3157 | 3733 | 4404 | 4882 | |
| 18 | 18 | 681 | 849 | 1192 | 1021 | 1530 | 2042 | 1361 | 2553 | 3147 | 3743 | 4252 | 4848 | |
| 20 | 20 | 613 | 919 | 1225 | 919 | 1455 | 1989 | 1225 | 2526 | 3138 | 3675 | 4288 | 4824 | |
| 22 | 22 | 557 | 835 | 1114 | 835 | 1949 | 1114 | 2506 | 3063 | 3619 | 4176 | 4733 | ||
| 24 | 24 | 510 | 766 | 1147 | 766 | 1405 | 1978 | 1021 | 2489 | 3126 | 3700 | 4210 | 4786 | |
| 30 | 30 | 510 | 817 | 1021 | 613 | 817 | ||||||||
| 32 | 32 | 478 | 766 | 957 | 574 | 1054 | ||||||||
| 34 | 34 | 450 | 721 | 901 | 540 | 992 | ||||||||
| 36 | 36 | 425 | 681 | 851 | 510 | 1021 | ||||||||
| 42 | 42 | 583 | 729 | 438 | 875 | |||||||||
