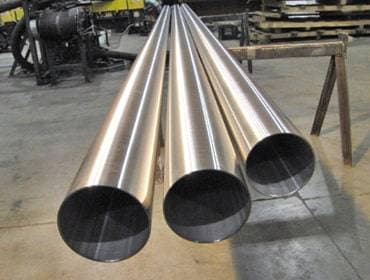

Metinox overseas manufactures and supply the SS 310 Welded Pipes both in large number. We provide the material to match the standard as per both the national and international markets. We manufacture all grades of SS 310 pipes and SS 310S Welded Pipes.
ASTM A312 Stainless Steel TP310S Welded Pipe, Stainless Steel S31000 Welded Pipes, Stainless Steel 1.4841 Welded Pipe, SS 310 / 310S Welded Pipes, SS 1.4845 Welded Pipes, TP310 Stainless Steel Welded Pipe, SUS 310 Welded Pipes, ASME SA312 TP310S Stainless Steel Welded Pipes Supplier in Mumbai India
The applications of SS 310S Welded Pipes is cryogenic structures, food processing equipment, staggers, annealing covers, muffles, retorts, combustions chambers and burners, refractory anchor bolts, thermo wells, lead pots, coal gasifier internal components, tube hangers for petroleum refining and steam boilers, radiant tubes, kilns, fluidized bed combustors.
Stainless Steel 310 Cold Drawn Pipes, Stainless Steel 310S Welded Industrial Pipe, 310/310S Stainless Steel Welded Pipe Dealer, Stainless Steel 310 Welded Pipes, SS 310S ERW Pipes, Stainless Steel 310S Welded Piping, Stainless Steel TP310/310S Welded Round Pipes, SS 310 Welded Pipes Exporter in Mumbai.
The properties of this grade of stainless steel SS 310S Welded Pipes are it contains 20% nickel and 25% chromium and make them highly resistant to corrosion and oxidation. The characteristics of 310/310S stainless are it provides strength and toughness at cryogenic temperatures; it has resistance to hot corrosion, moderate strength at high temperature, and oxidation resistance to 2000 degree F.
Develops for high temperature along with great ductility and weldability Grade 310 is a combination of greater temperature. The specification of SS 310 Welded Pipes is ASTM A312/ASTM SA312, the range is between 18/ inch N to 36 inch NB, ¼ inch OD to 36 inch OD, the outer diameter is 6.35mm O.D to 114.3 mm O.D, the thickness is 0.8mm to 12.7 mm, the length is up to 26 meters, with the beveled and plain end.
The various types of SS 310 Welded Pipes are DIN 4, 4845 stainless steel 310S Welded pipes, SS 310S ERW Pipes, Steel 310 Welded Pipes, SS 3105 UNS S31008 Welded Pipes, AISI SS 310S Welded Pipes, Din 1, 4841 stainless steel 310 Welded pipes, ASTM A 312 Stainless steel 310 Welded pipes, SS 310 UNS S31000 Welded Pipes, Stainless steel 310 welded pipes.
Before packaging and shipping various tests are performed like mechanical tests, intergranular tests, macro/micro tests, flattening/flaring tests, positive material identification tests, chemical tests, hardness tests, pitting resistance tests. The document provided to the clients are lab test report, material traceability report, guarantee letter, raw material test report, packaging list, and heat treatment chart.
Read More
Types of Stainless Steel 310 / 310S Welded Pipes
Welded Round Pipe
ASTM A312 TP310 Welded Round Pipes Supplier, SS S31000 Welded Round Pipes Exporter, SS 1.4841 Welded Round Pipes Dealer, SUS 310 Welded Round Pipes, ASME SA312 SS 310 Welded Round Pipes in Mumbai, India.

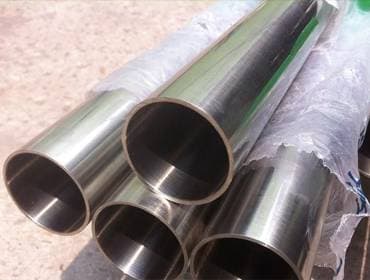

Welded Polish Pipe
ASTM A312 TP310S Welded Polish Pipes Supplier, SS 310S24 Welded Polish Pipes Exporter, SS 1.4845 Welded Polish Pipes Dealer, SUS 310S Polish Welded Pipes, ASME SA312 SS 310S Welded Polish Pipes in Mumbai, India.
Specification of Stainless Steel 310 / 310S Welded Pipes
Specifications : ASTM A312 / ASME SA312
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size available Ex-stock
Thickness : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Size : 1/2" NB - 24" NB
Type : Welded
Form: Round Pipes, Square Pipes, Rectangular Pipes.
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Equivalent Grades of Stainless Steel 310 / 310S Welded Pipes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | X8CrNi25-21 |
Chemical Composition of Stainless Steel 310 / 310S Welded Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 - 26.00 | 0.10 max | 19.00 - 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 ma | 0.045 max | 0.030 max | 24.00 - 26.00 | 0.75 max | 19.00 - 21.00 | 53.095 min |
ASME SA 312 SS 310 / 310S Welded Pipe Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Other Types of Stainless Steel 310 / 310S Welded Pipes
| Austenitic Stainless Steel 310S Welded Pipes | 310S Stainless Steel Welded Pipes Stockist |
| Stainless Steel 1.4841 Welded Pipes | Stainless Steel S31000 Welded Piping |
| Stainless Steel 310S24 Welded Pipes Dealer | Stainless Steel 1.4845 Welded Pipe Stockist |
| Stainless Steel 1.4841 Welded Pipes | ASTM A312 TP310 Stainless Steel Welded Pipes |
| Stainless Steel TP 310S Welded Hollow Pipes | 310S Stainless Steel ERW Pipes Supplier |
| A312 SS S31000 ERW Pipes Exporter | Stainless Steel 310S24 Welded Pipes Dealer |
| Stainless Steel 310 Welded Pipes Exporter in India | 310 Stainless Steel Welded Pipes Supplier in India |
| Stainless Steel SUS 310 Polished Welded Pipes | ASME SA312 TP310 Stainless Steel Welded Pipes |
| Stainless Steel 1.4845 Welded Pipes Supplier in India | S31000 Stainless Steel Welded Pipes Supplier in India |
